Modal Trail Bike

Overview

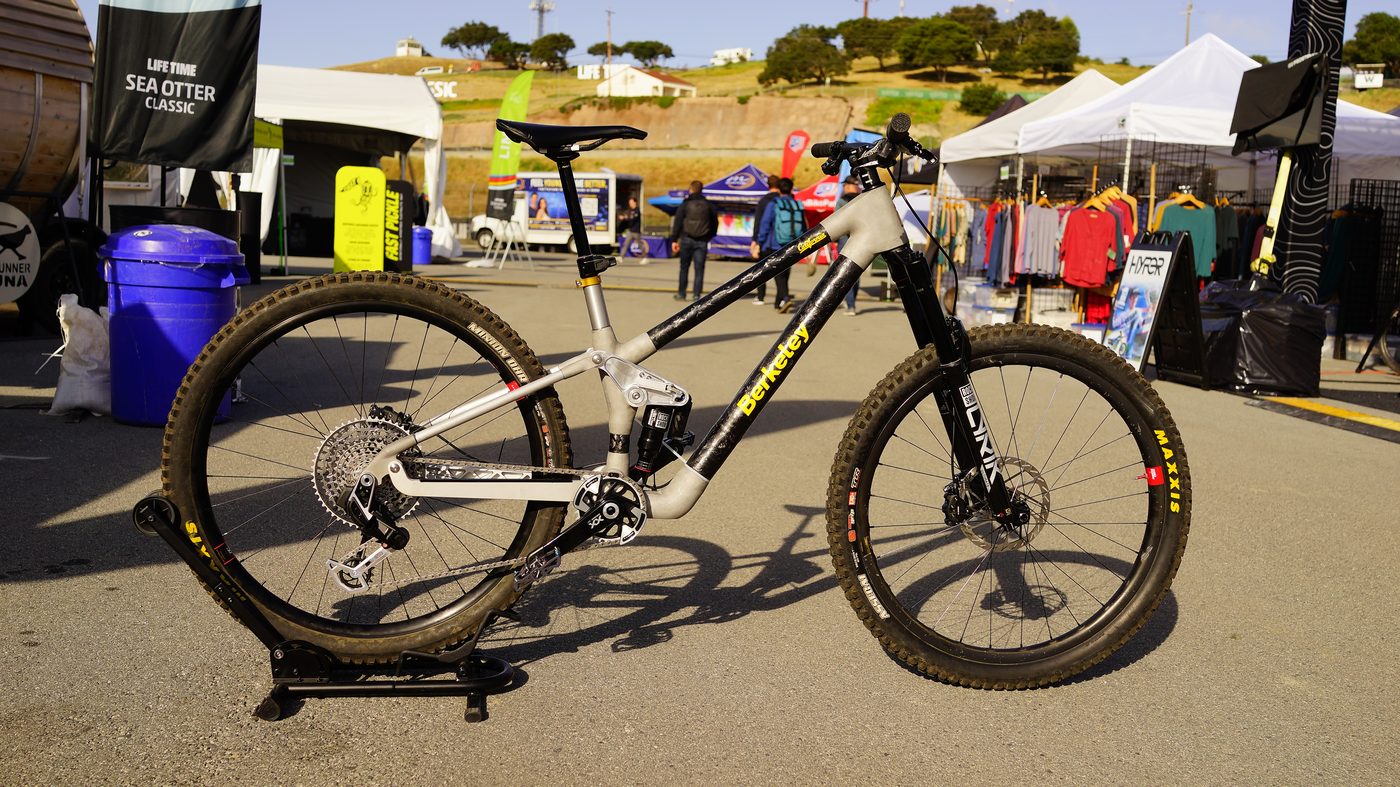

Built with Bike Builders of Berkeley, the Modal Trail Bike is a fully custom full-suspension carbon fiber trail bike. I actually came up with the name: "modal" because the bike has distinct modes, thanks to a two-position rocker that lets it switch between two very different suspension setups, essentially two bikes in one frame. Like our other frames, it is built from carbon fiber (CFRP) tubes bonded to machined metal lugs, a hybrid approach that pairs the exceptional stiffness-to-weight of carbon with the complex geometry and suspension hardpoints that are far easier to achieve in metal. Rather than buy off-the-shelf tubing, we manufactured every carbon tube in house on tooling we designed and built ourselves. On the team, I focused on the carbon fiber, manufacturing the frame's tubes and helping bond them into the finished frame.

Composites and manufacturing

I manufactured the frame's CFRP tubes using the custom filament winder and post-processing system our team designed and built (see the Carbon Fiber Filament Winder project). Each tube starts as continuous carbon tow, wet out with epoxy and wound under controlled tension onto a sectioned mandrel that defines its inner shape. Once wound, the tube is vacuum bagged and cured, then post-processed to compact the laminate, drive out excess resin, and leave a clean structural surface. Building the tubes ourselves let us tune the fiber orientation and resin content for the loads each part of the frame would see, and produce shapes that are not available as stock tubing.

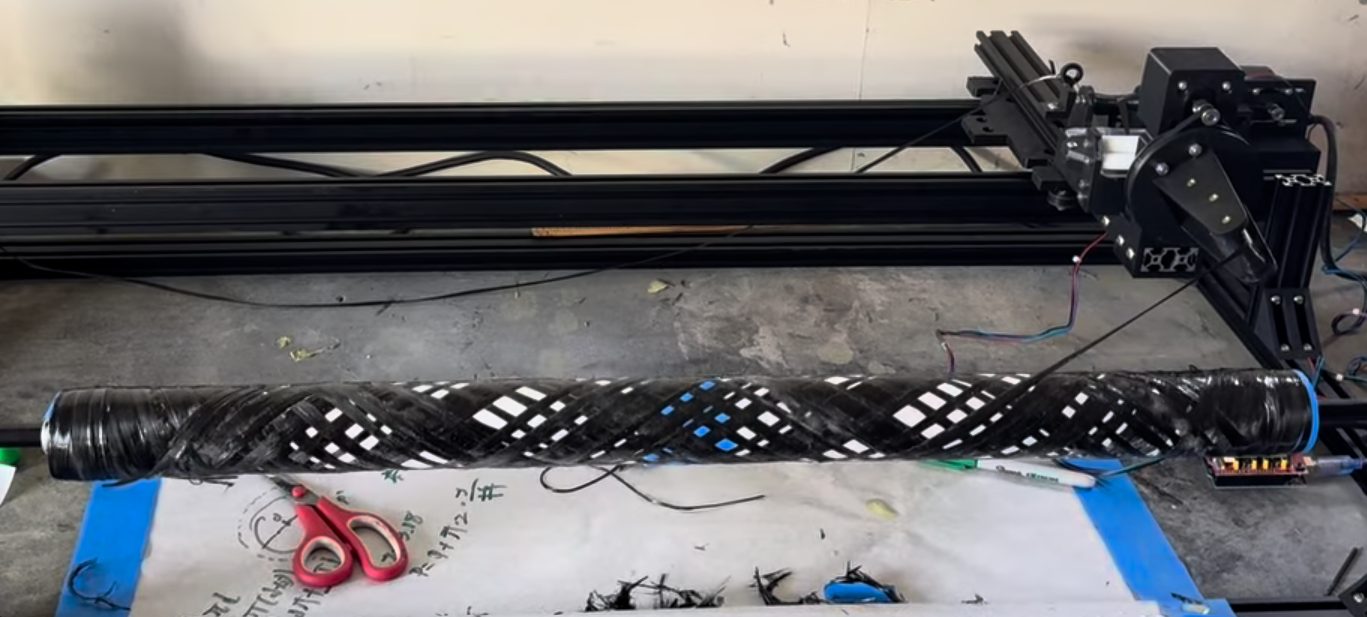

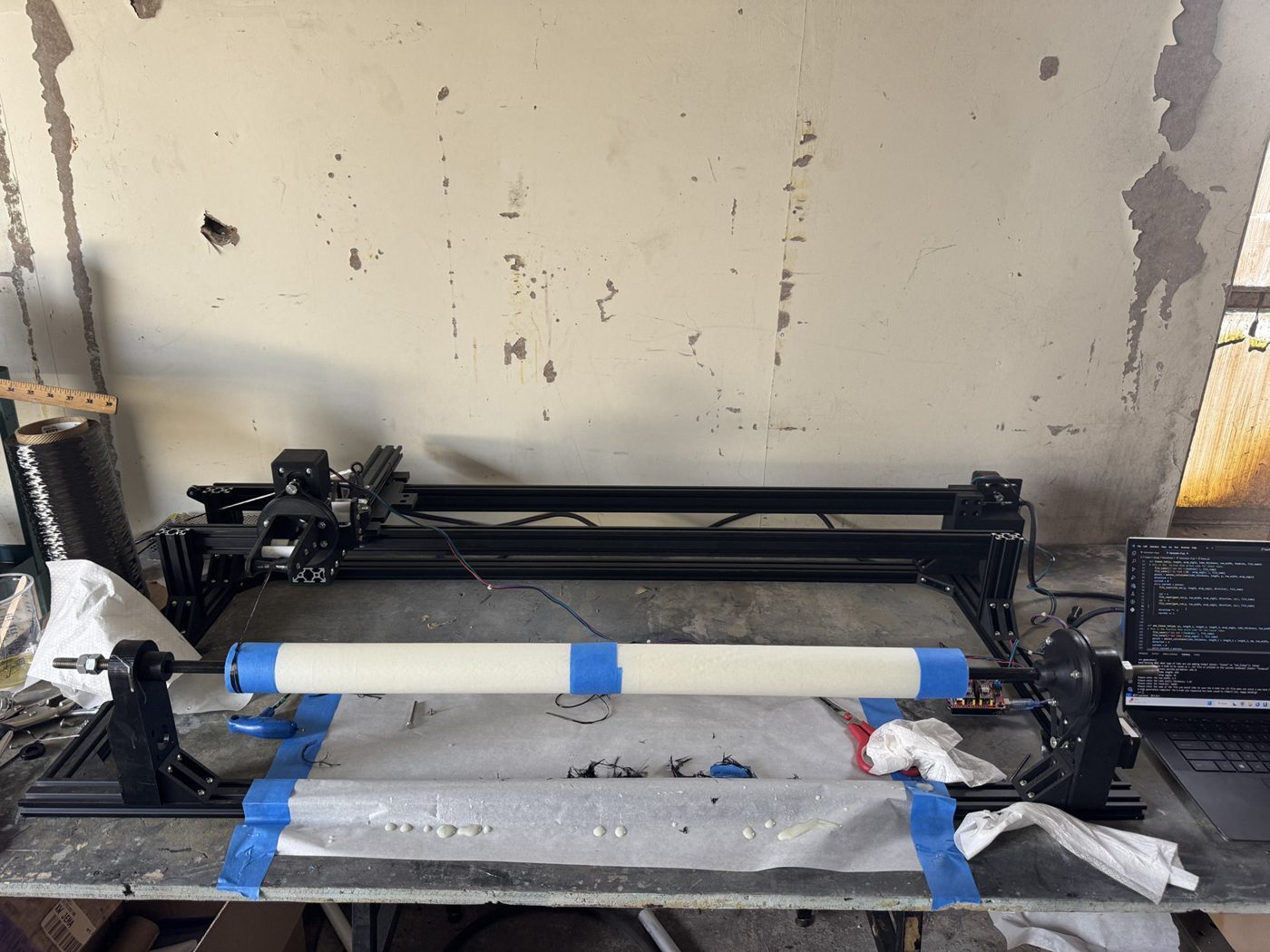

Winding carbon fiber tow onto a mandrel Mandrel ready to wind

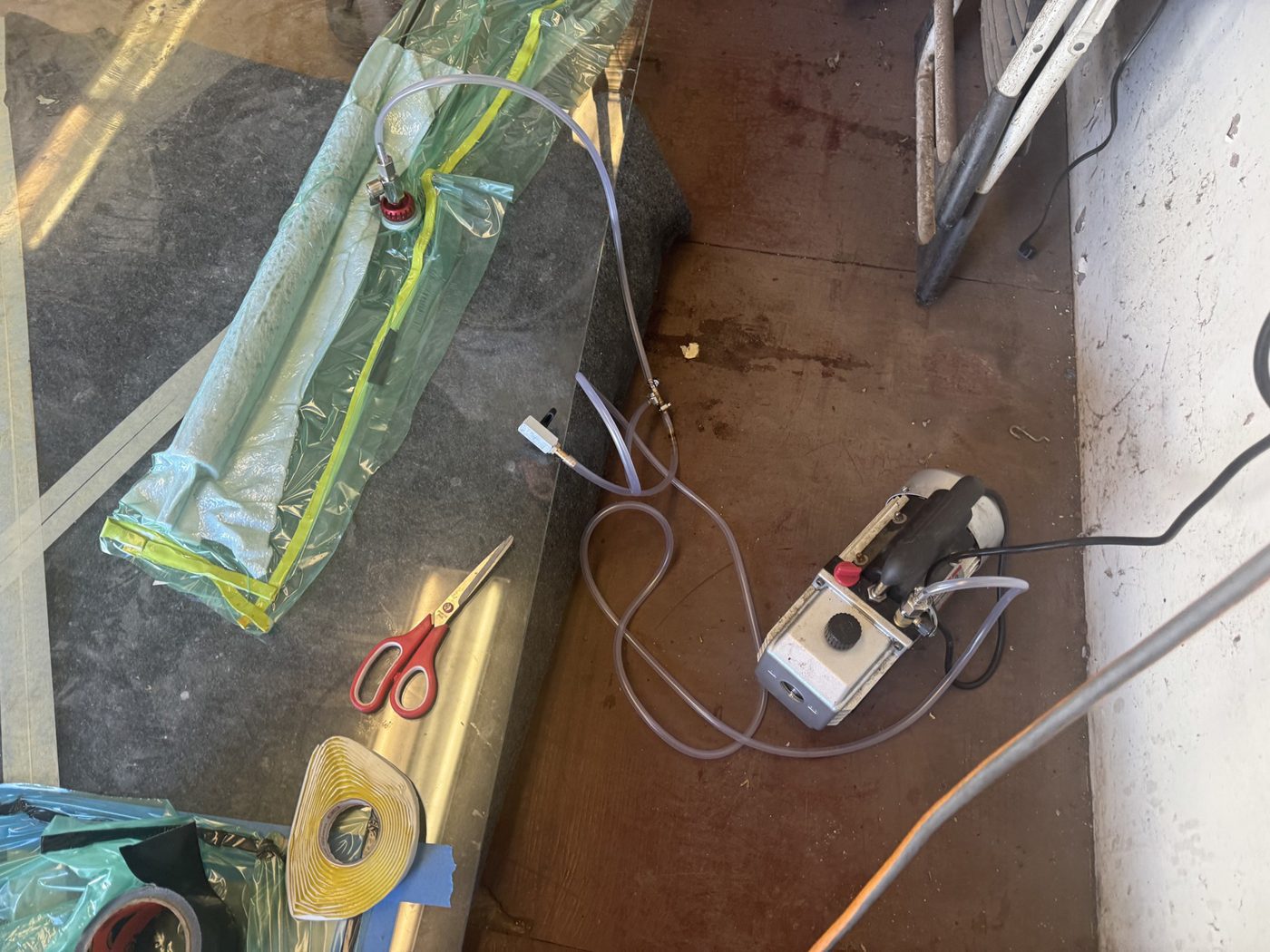

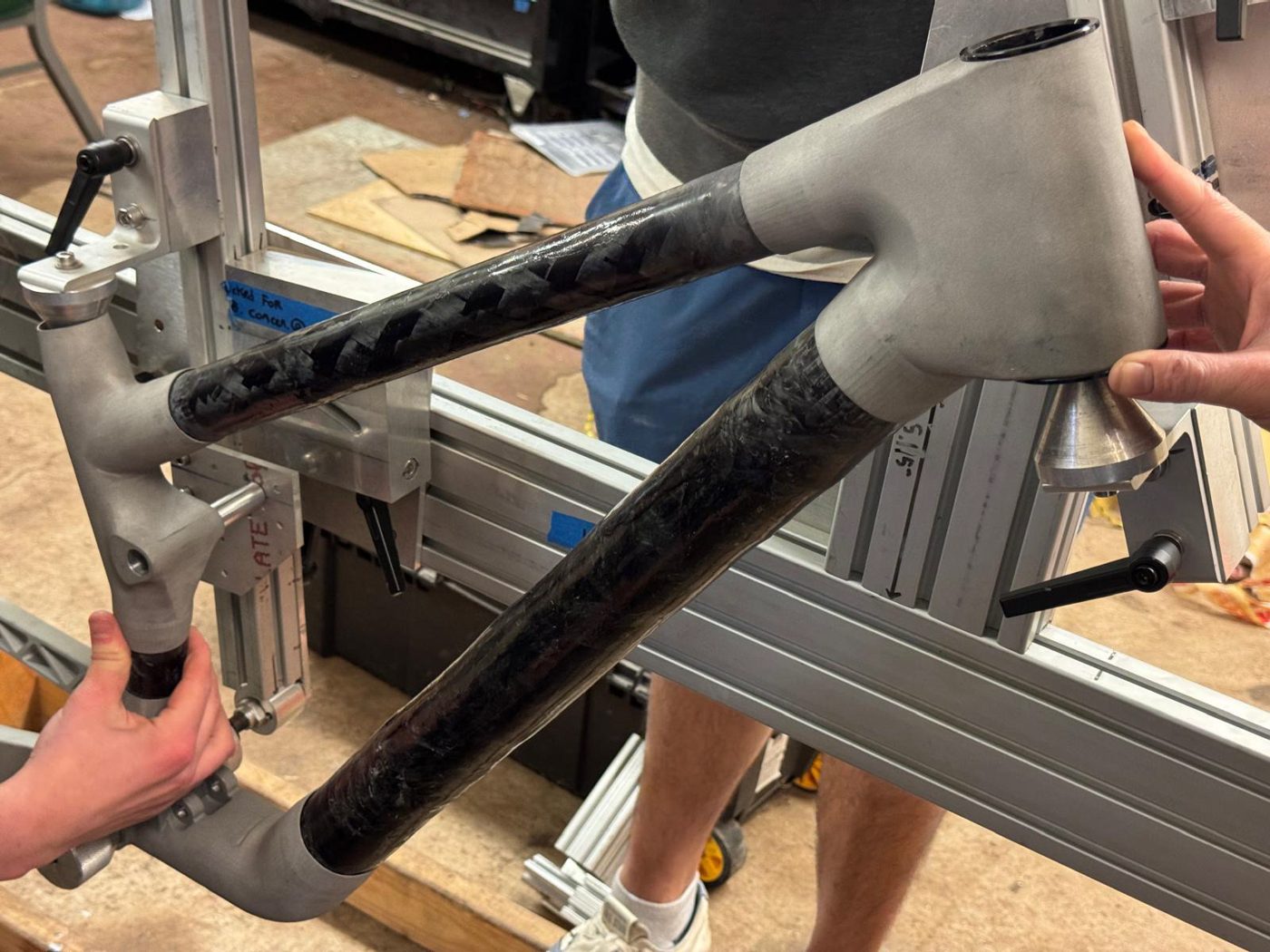

Vacuum bag processing Cured tubes fitted to the frame

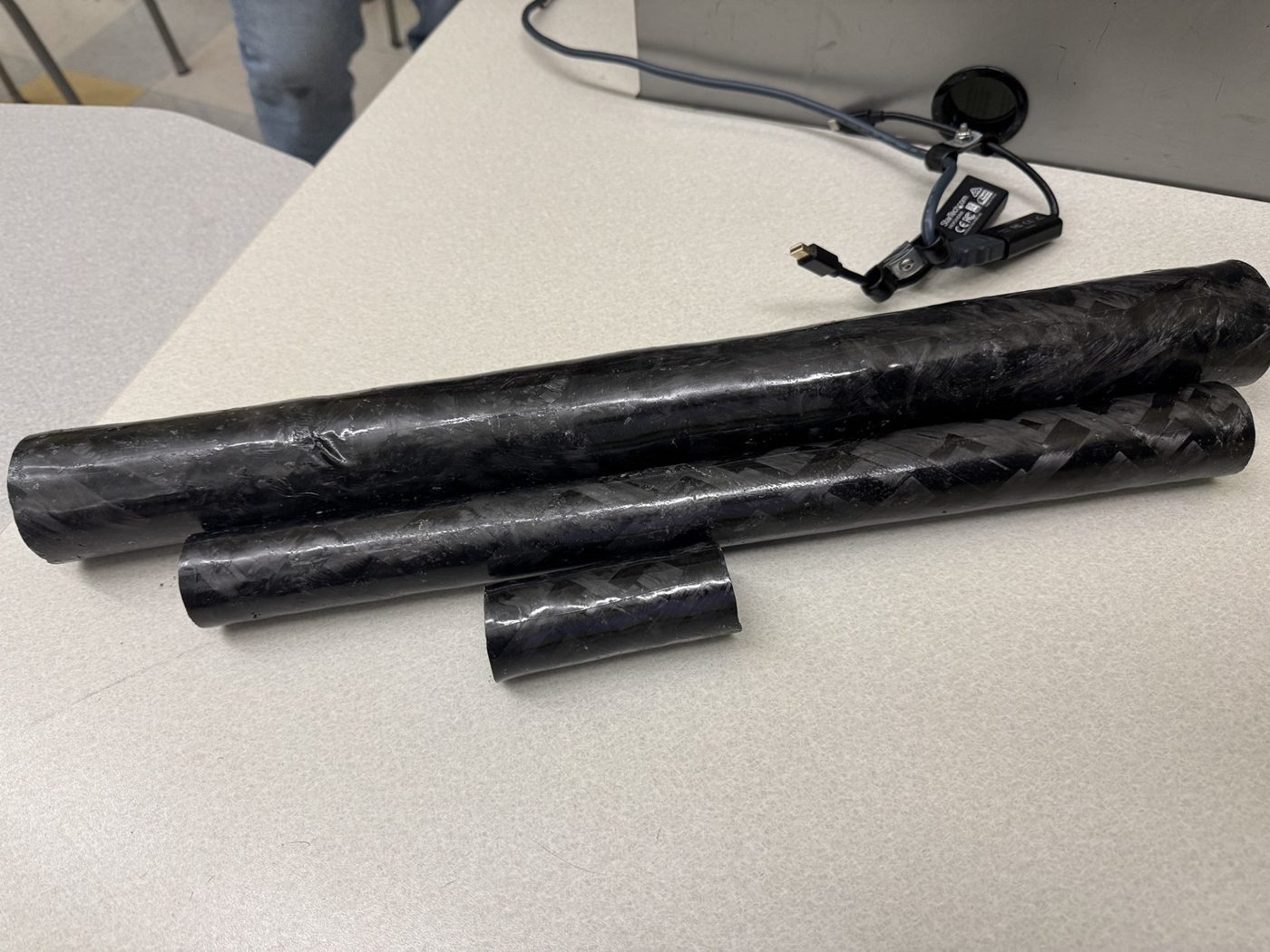

In the shop working on the carbon fiber Finished carbon tubes

The two-position rocker

The bike's standout feature is its two-position rocker, the linkage that connects the rear suspension to the shock. It can be mounted in two positions, and each one gives the bike a genuinely different character: one setup is steeper and more efficient for climbing and mellower trails, while the other slackens the geometry and opens up the travel for steep, aggressive descending. It effectively gives you two bikes in one. Because switching between them is a deliberate change rather than a set-and-forget compromise, each mode stays fully committed to its job, so the difference in how the bike rides is dramatic.

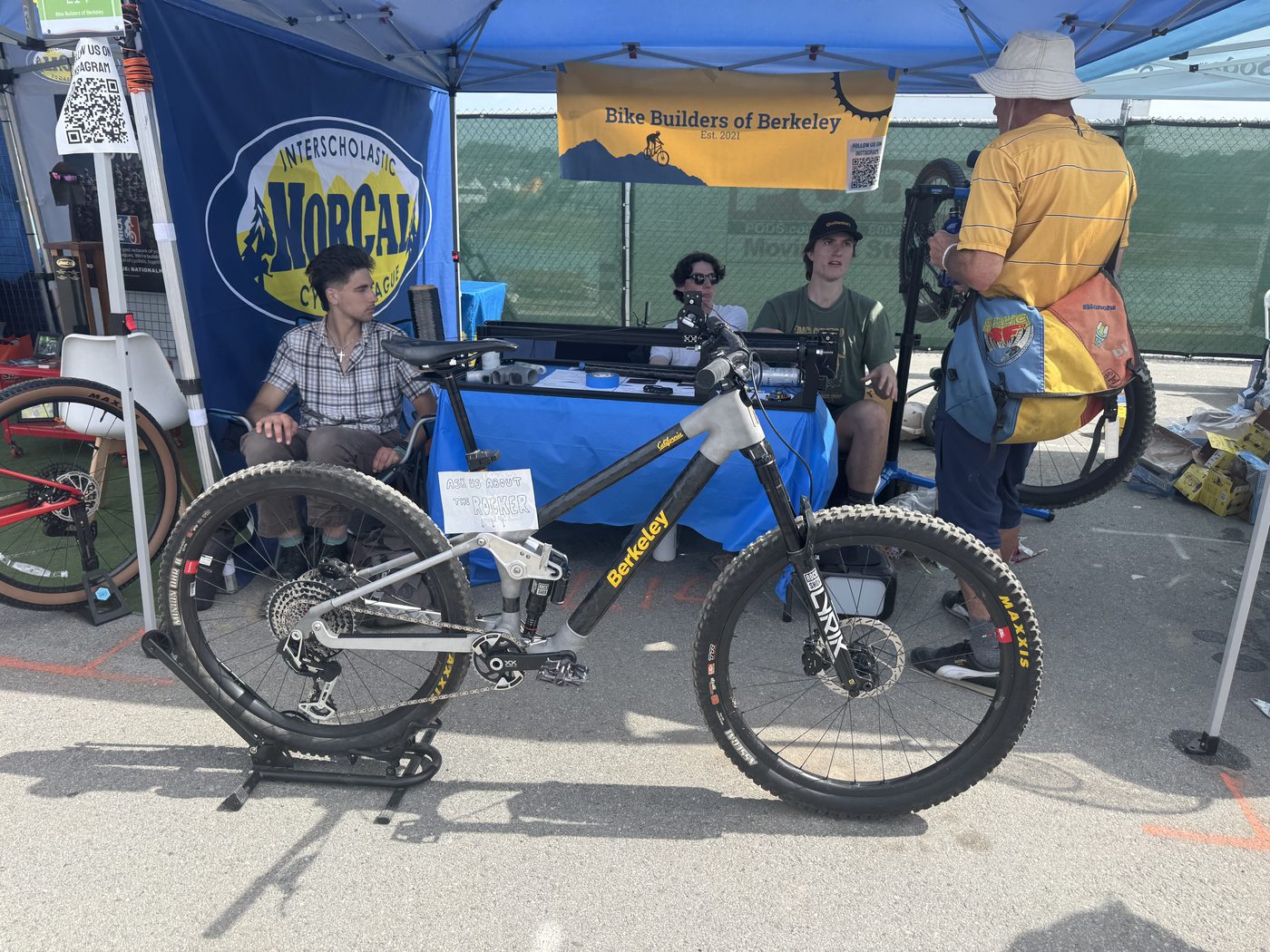

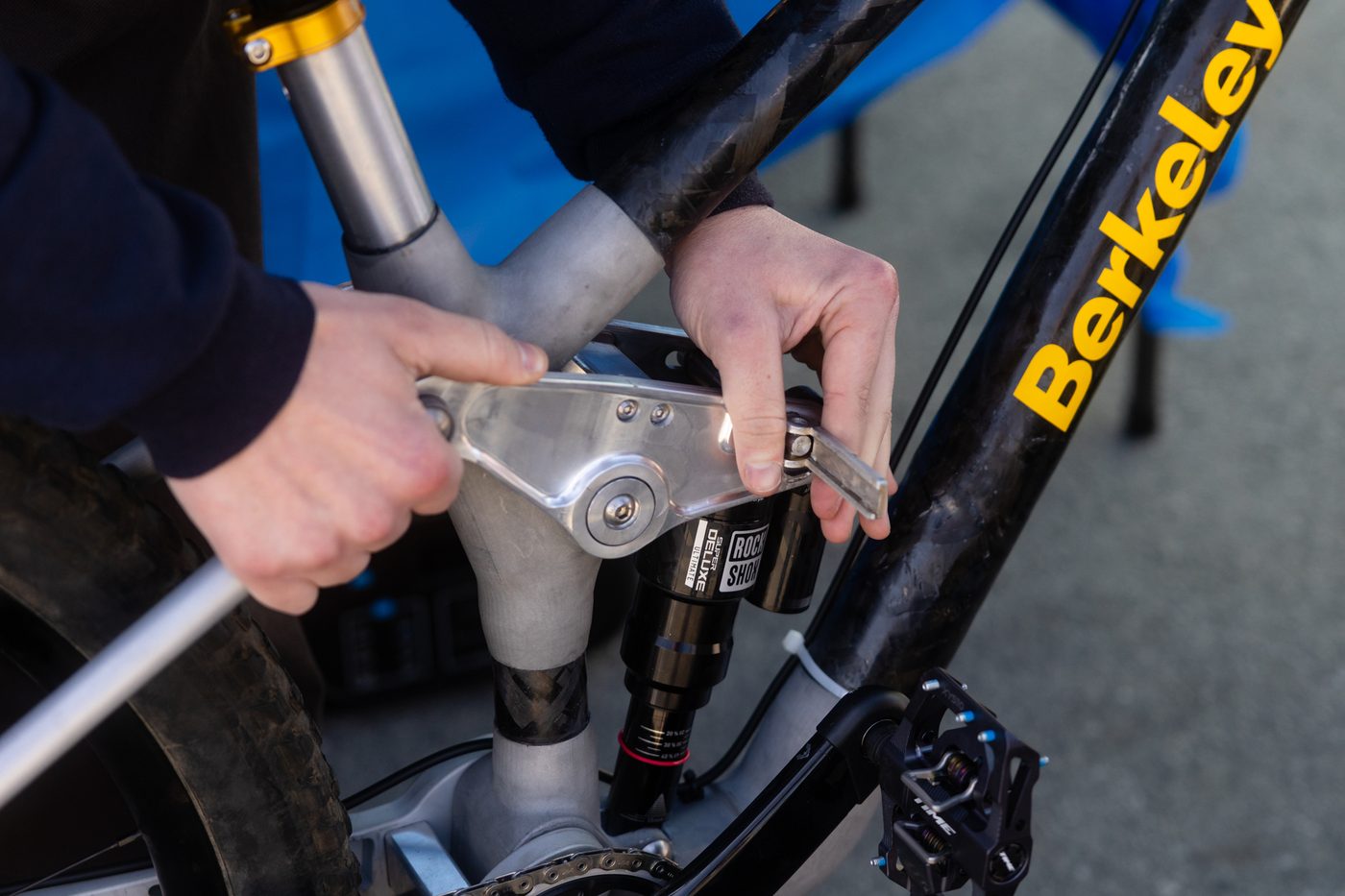

The rocker link and shock up close On display, inviting people to ask about the rocker

Results

With the tubes wound, finished, and bonded to the lugs, we assembled everything into a complete, rideable trail bike and brought it out to show, including at the Sea Otter Classic. Watching the carbon parts I manufactured come together into a working bike, from raw carbon tow to a frame you can actually ride, was the most rewarding part of the project, and it gave the whole team real hardware to test, ride, and keep improving.

With the finished bike on campus The Bike Builders of Berkeley team
